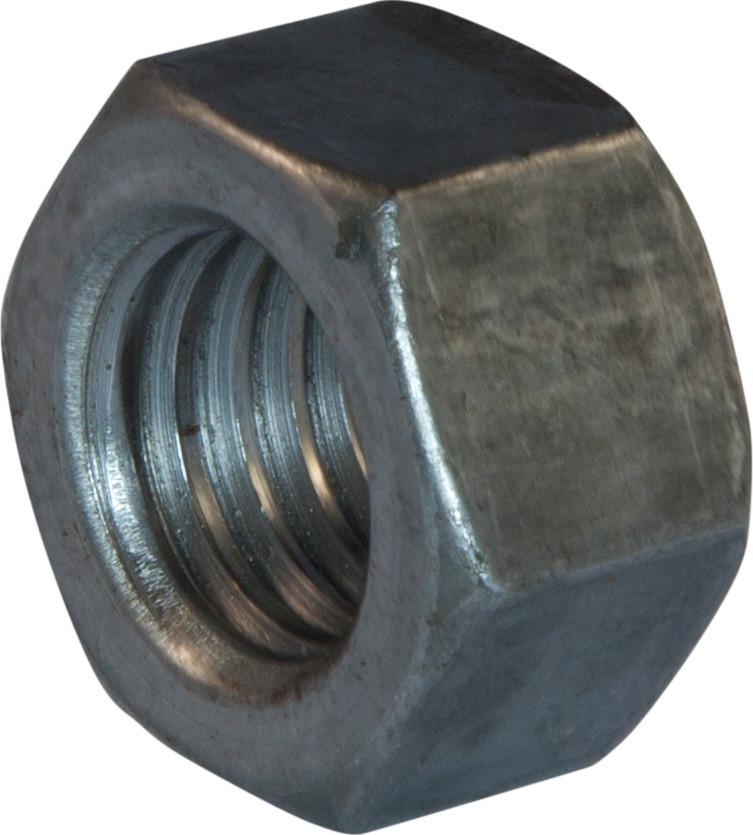

5/8-11 Grade 2 Finished Hex Nut Plain . Grade 2 Finished Hex Nuts are manufactured from low carbon steel, 1008-1010 for diameters up to 1 inch (cold-formed) and 1045 steel for diameters over 1 inch (hot-formed). Material is manufactured to meet or exceed ASTM A563 Grade A. Zinc plated material will meet or exceed ASTM F1941. Hot-Dip Galvanized material will meet or exceed ASTM A563. Hot-Dip Galvanized nuts are over tapped per ASTM A563. Hardness requirements of HRB 68 - HRC 32 are met or exceeded. Proof load strength of 90,000 psi minimum is met for plain or zinc plated material, 68,000 psi for Hot-Dip Galvanized material.
Specifications:
Nominal Size: 1 1/4 inch
Basic Major Diameter: 1.2500 inches
Width Across Flats:
Maximum: 1.875 inches
Minimum: 1.812 inches
Thickness:
Maximum: 2.165 inches
Minimum: 2.066 inches
Material Composition:
Steel Type: Low carbon steel
Chemical Composition:
Carbon: Maximum 0.47%
Phosphorus: Maximum 0.12%
Sulfur: Maximum 0.23%
Mechanical Properties:
Tensile Strength: Minimum of 74,000 psi
Hardness: Rockwell hardness ranges from B68 to C32
Proof Load:
Coarse thread: 90,000 psi
Fine thread: 80,000 psi
This combination of features makes the 1 1/4-12 Grade 2 finished hex nut (plain) an excellent choice for various fastening needs.
