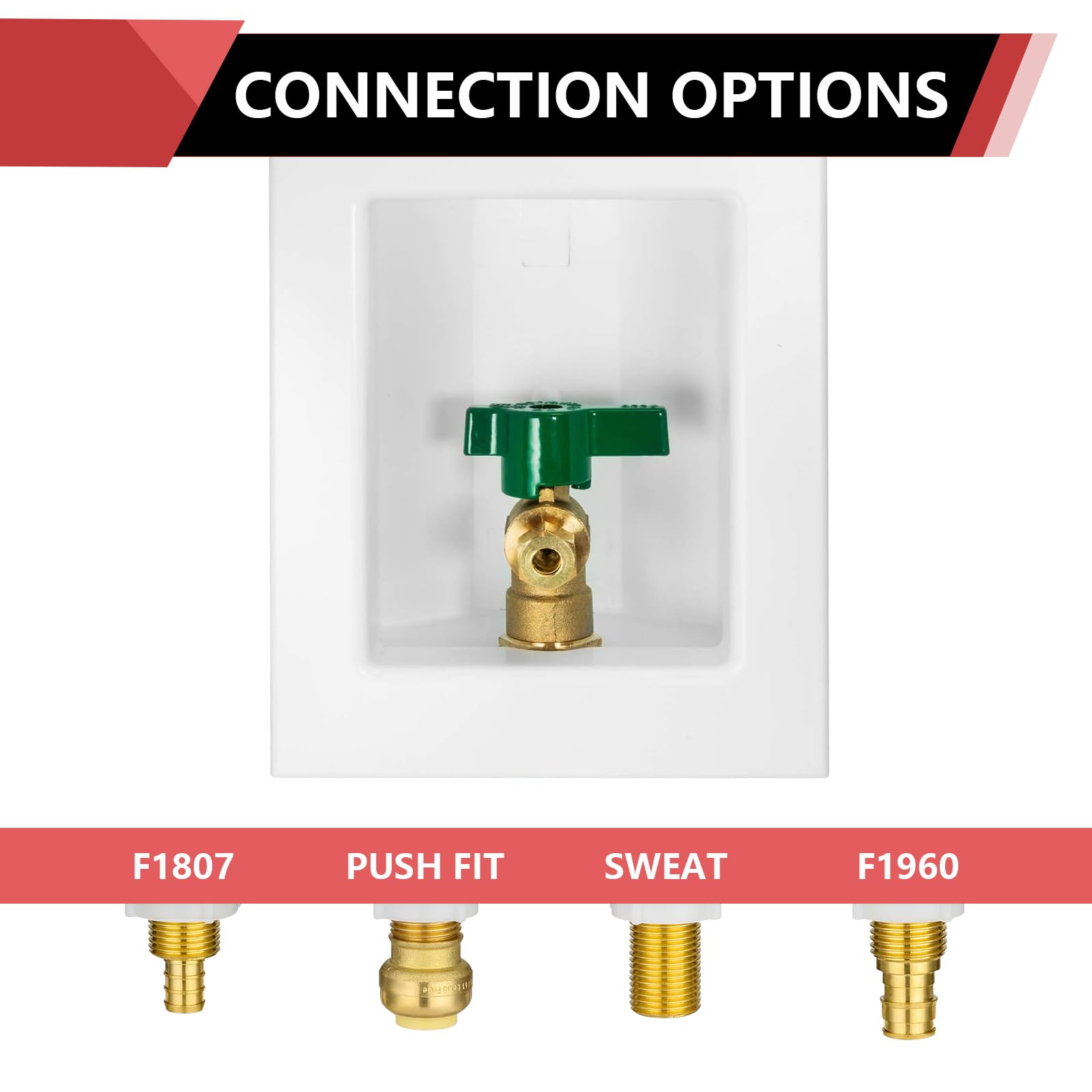

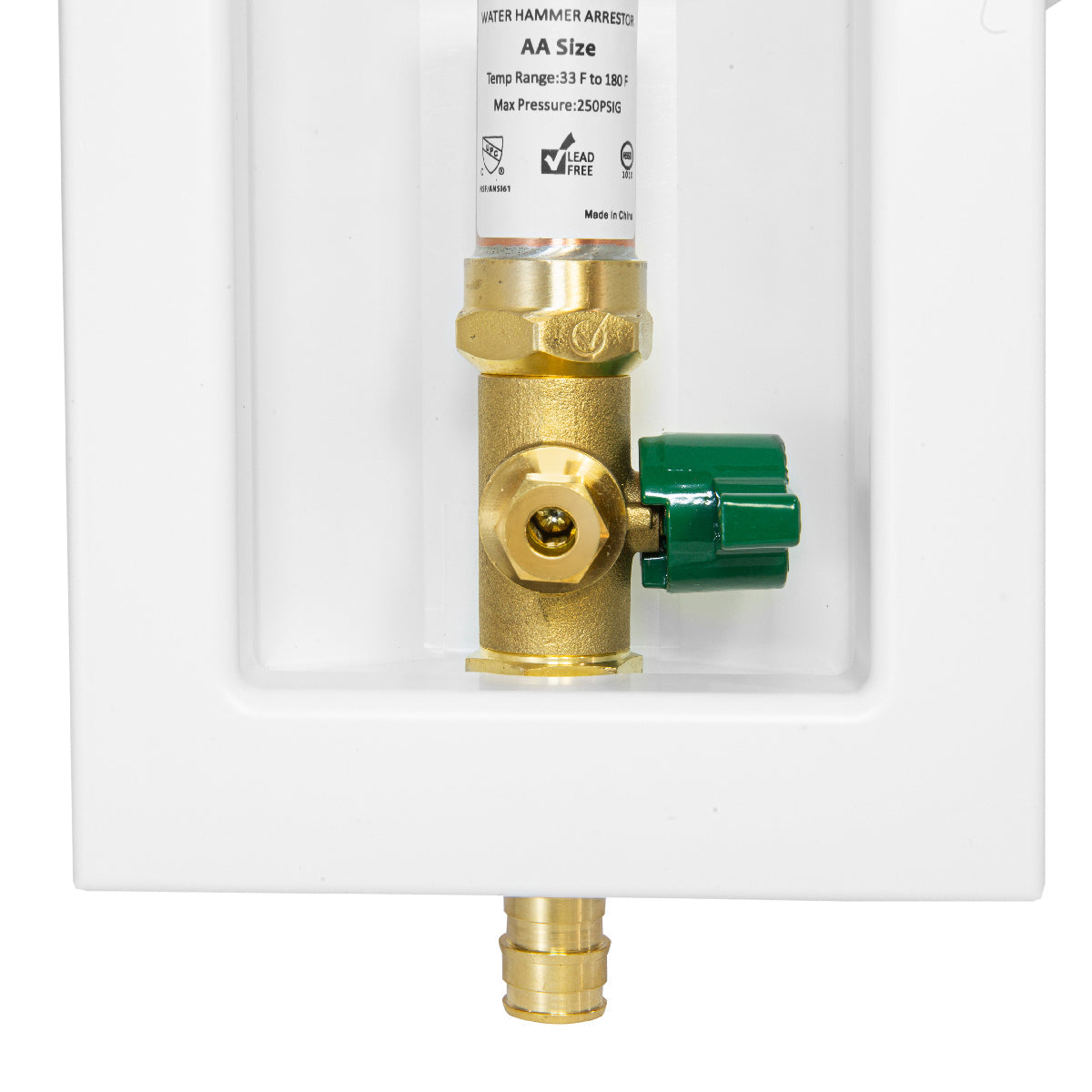

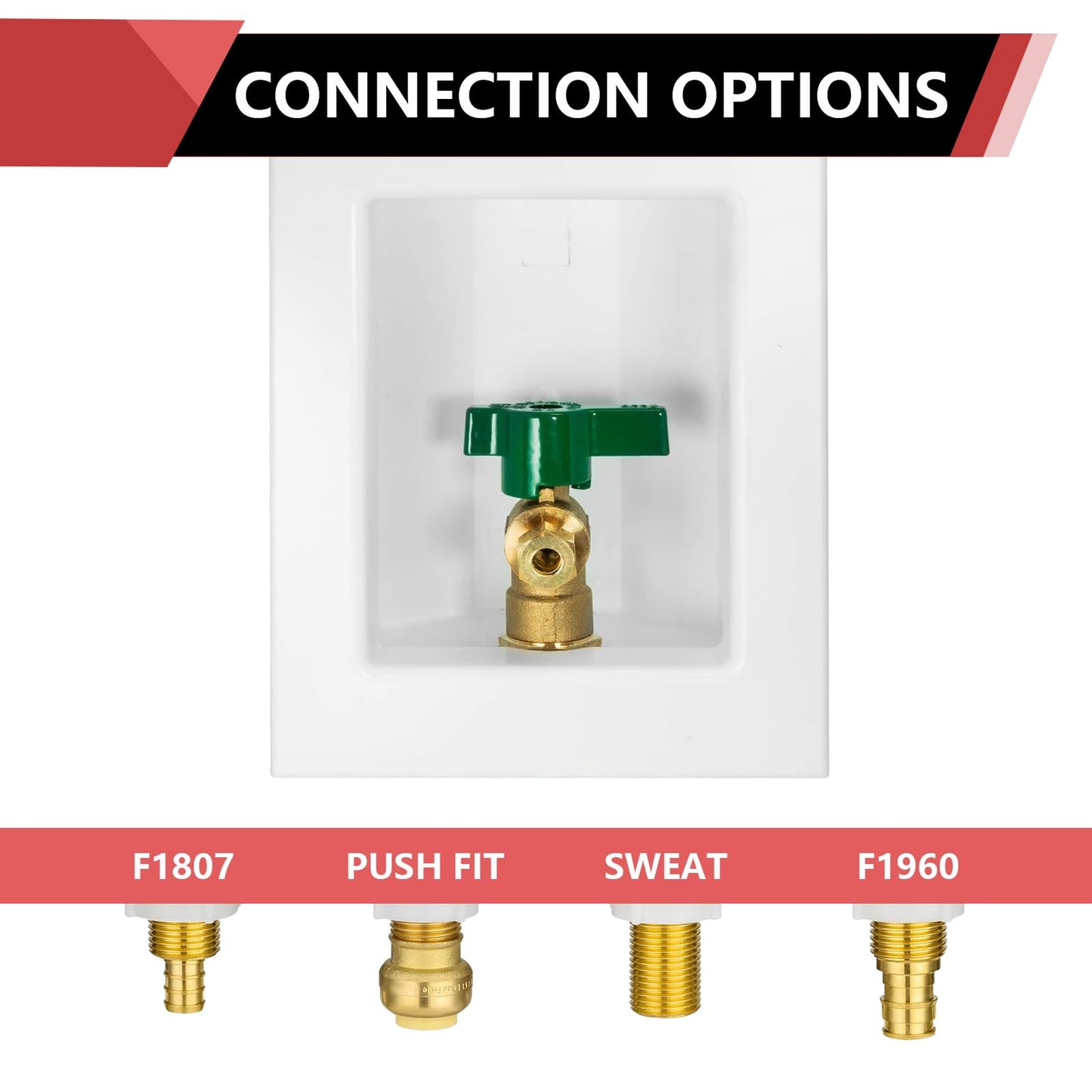

Equipped with a 1/2 inch Crimp PEX inlet and 1/4 inch OD compression outlet connections;

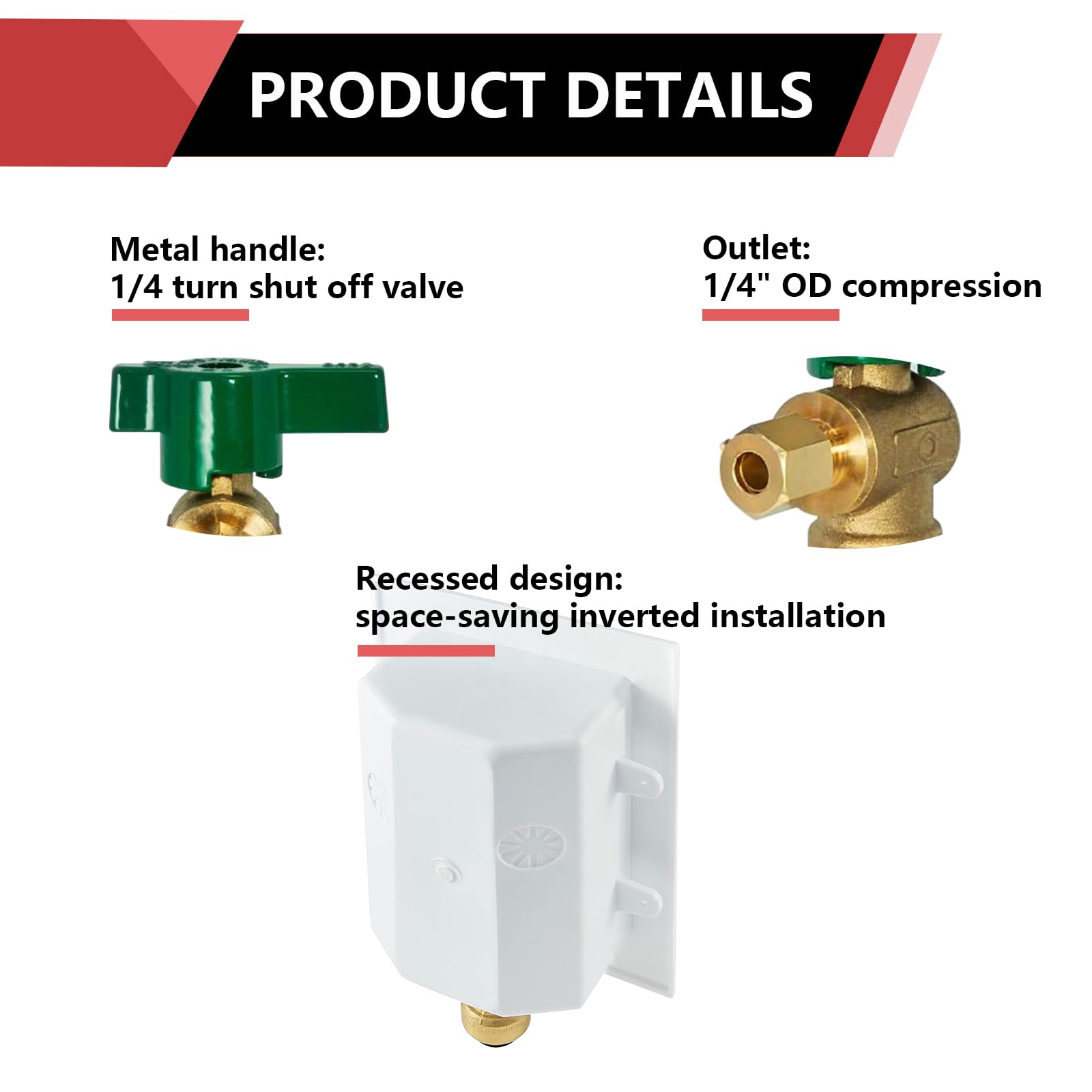

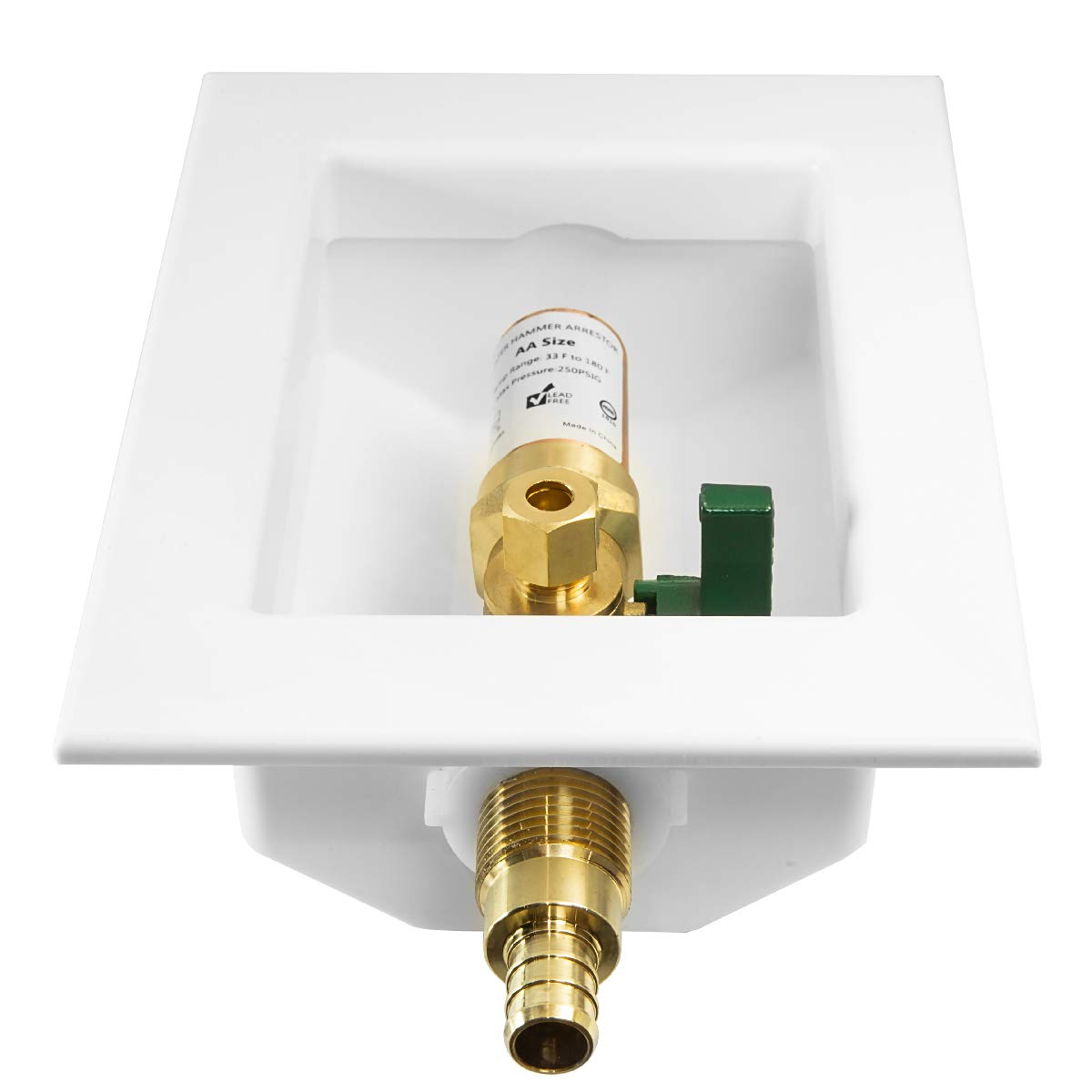

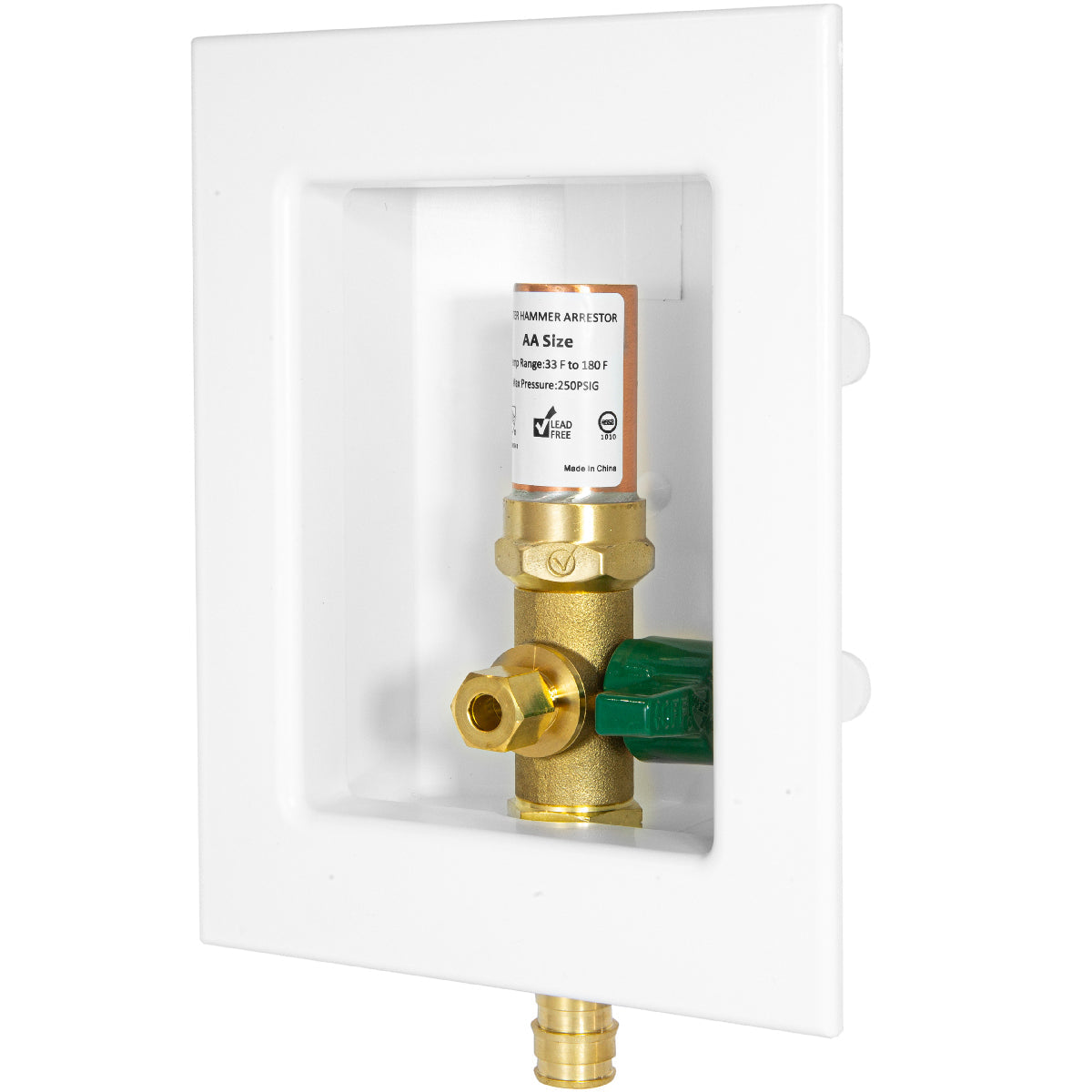

Pre-installed 1/4 turn Lead Free brass valve with copper hammer arrester;
Complies with NSF 61-G requirements(Portable Water Standard)

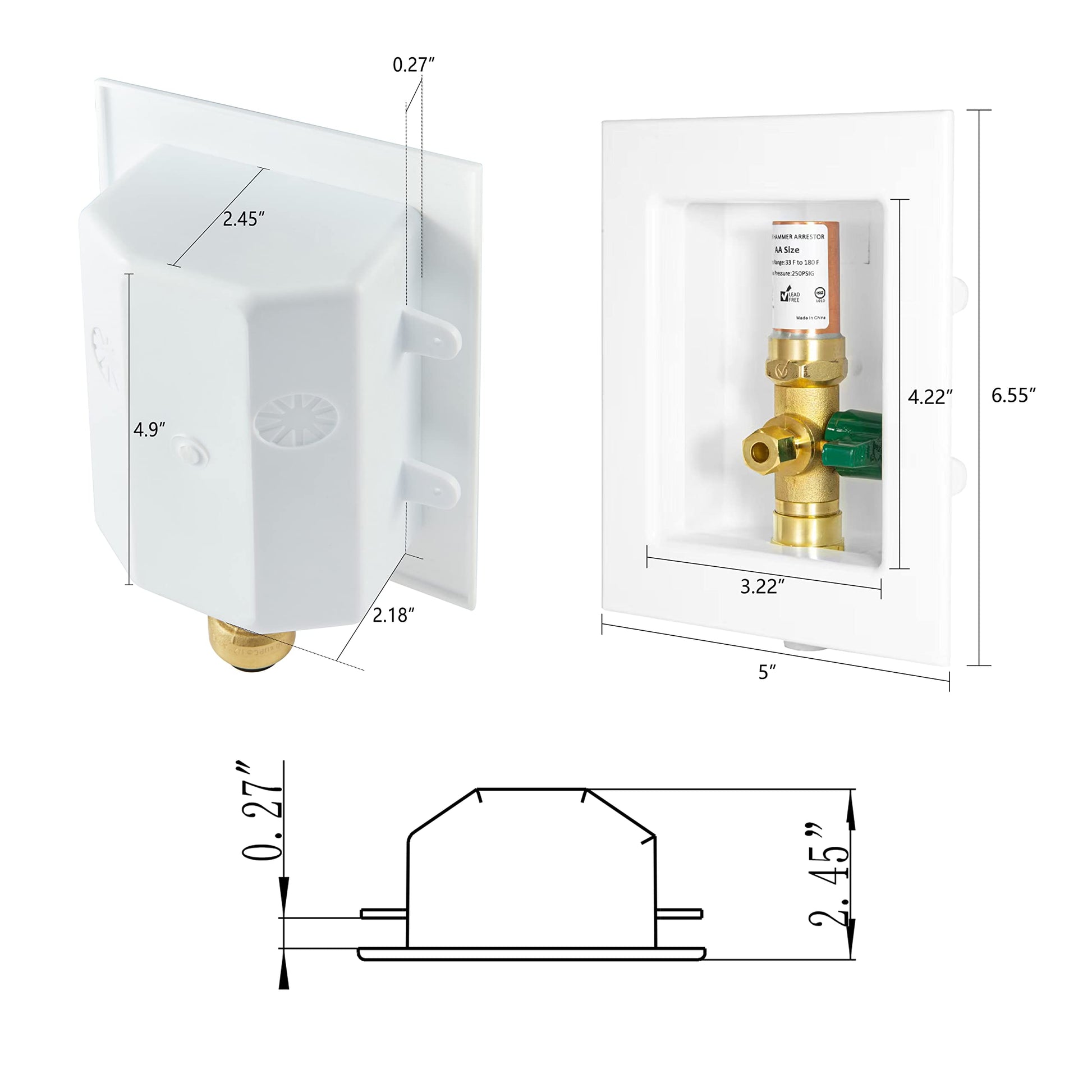

The Snap-on faceplate dimensions are 6-1/2 inch x 5 inch; The rough opening is 5 inch x 3-1/2 inch x 2-3/4 inch. The box with one-piece box-and-flange design, no additional support framing required.
Working temperature is 34° F to 180° F, Working pressure is 250 PSI
