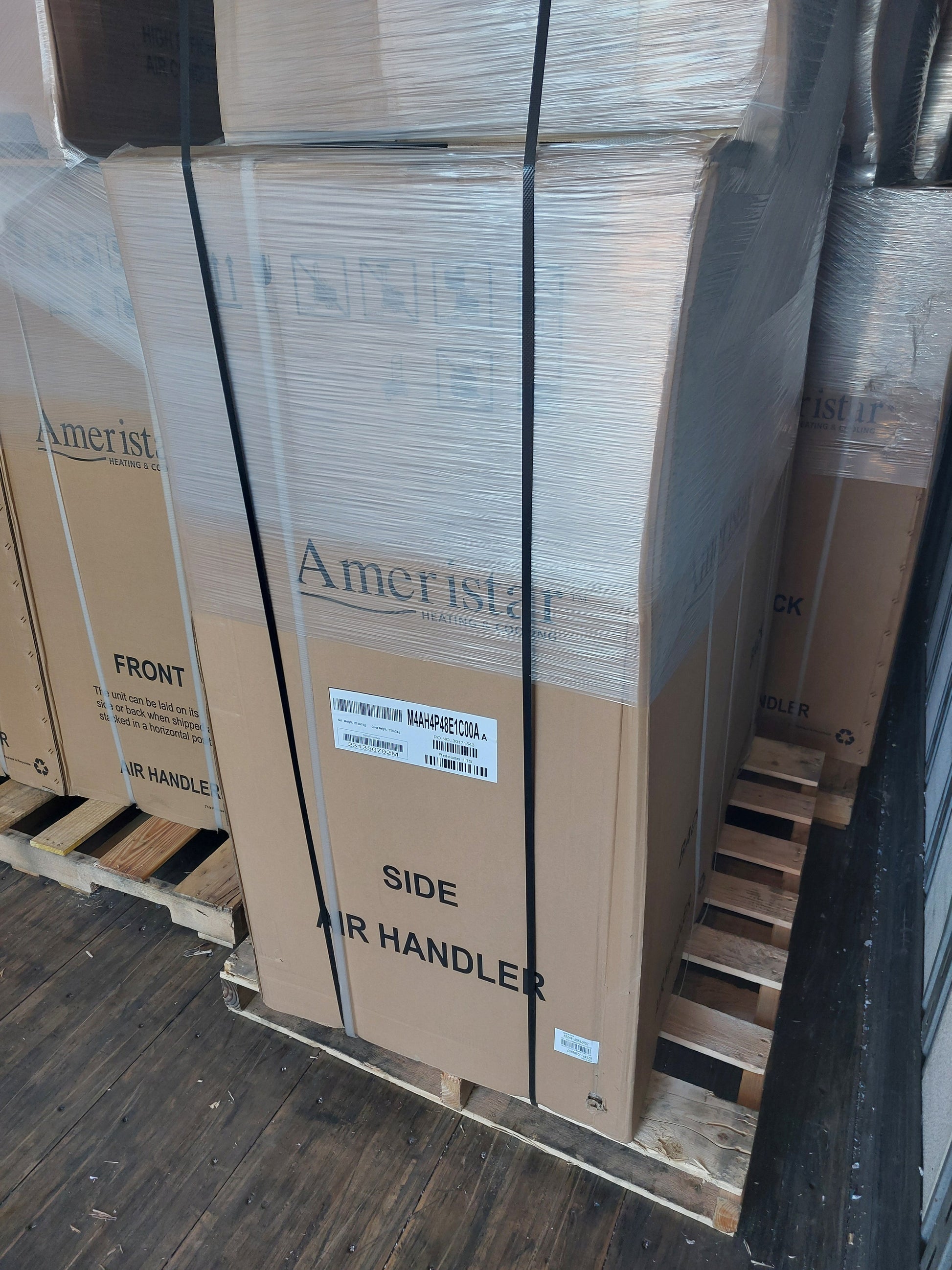

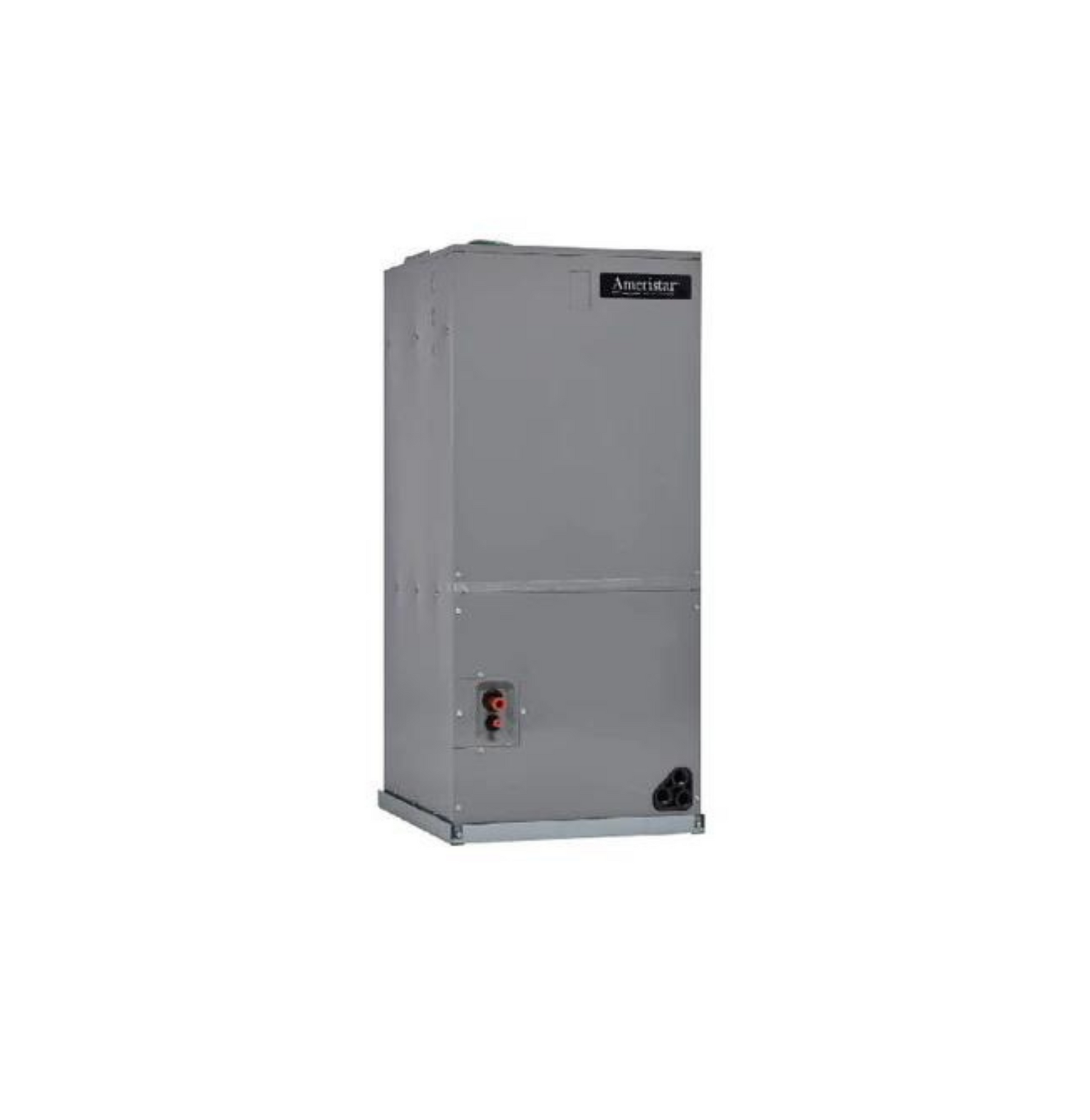

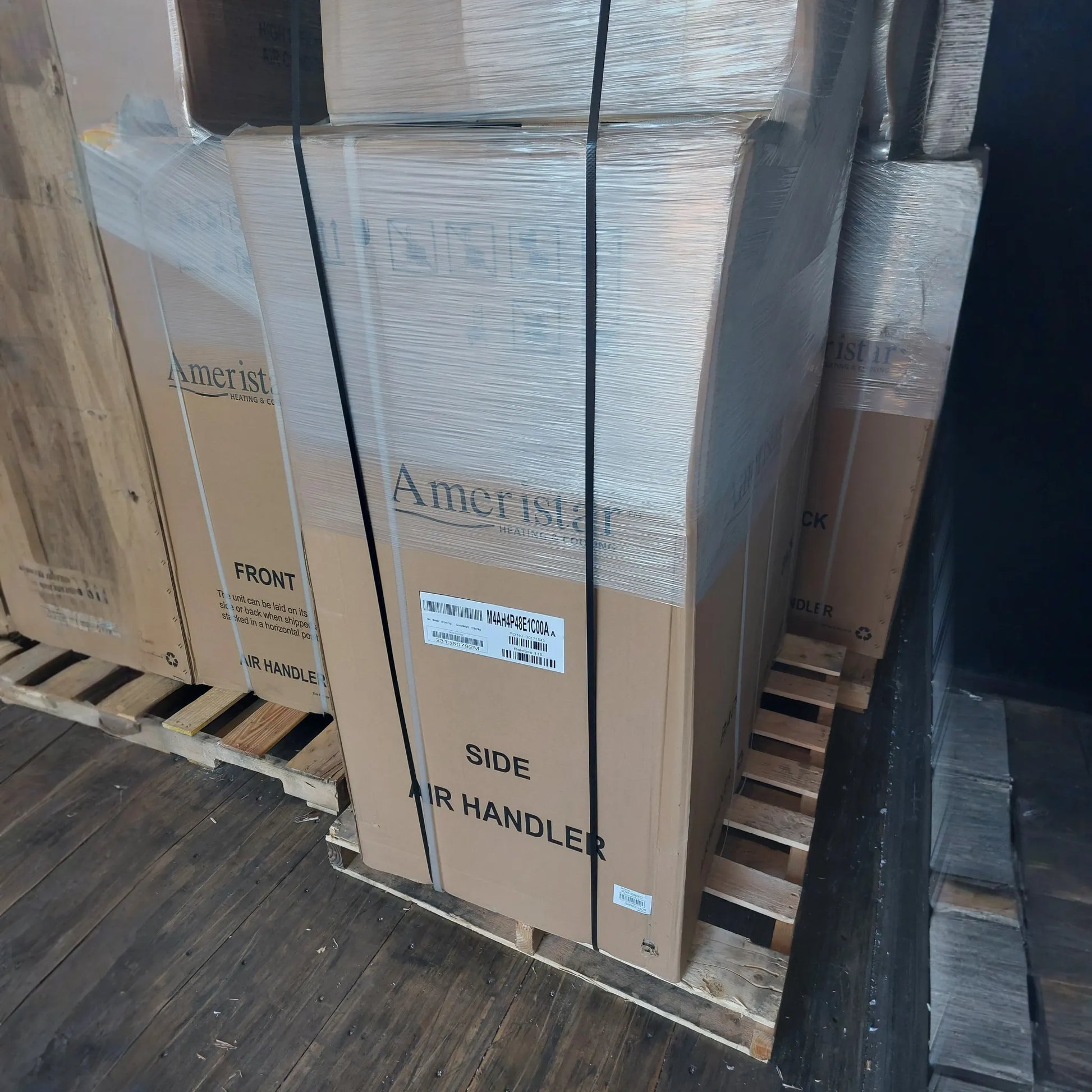

Ameristar By Trane M4AH4P48E1C00AA 4 Ton Multi-Position Air Handler

Ameristar By Trane M4AH4P48E1C00AA 4 Ton Multi-Position Air Handler

$1,200.00
$1,200.00
Sale Sold out
Shipping calculated at checkout.

In stock

  • General Information

    • Model: M4AH4P48E1C00AA
    • Refrigerant: R-410A

    Electrical Data

    • Rated Volts/Phase/Hertz: 208-230/1/60
    • Motor Speed (RPM): 925
    • Full Load Amps (F.L. Amps): 4.3

    Indoor Coil Specifications

    • Type: Plate Fin
    • Rows: 4
    • Fins Per Inch (F.P.I.): 17
    • Face Area: 5.99 sq. ft.
    • Tube Size: 9/32 inch
    • Refrigerant Control: Orifice
    • Drain Connection Size: 3/4 inch NPT

    Duct Connections

    • Connections: See Outline Drawing

    Indoor Fan Specifications

    • Type: Centrifugal
    • Diameter-Width: 13 x 10-5/8 inches
    • Number Used: 1
    • Drive: Direct
    • Number of Speeds: 3
    • CFM vs. in. w.g.: See Fan Performance Table
    • Motor H.P.: 1/2

    Filter Specifications

    • Filter Furnished: No
    • Recommended Filter Type: Throwaway
    • Filter Size: 20 x 22 inches
    • Filter Thickness: 1 inch

    Refrigerant Line Connections

    • Connection Type: Brazed
    • Gas Line Connection Size: 7/8 inch
    • Liquid Line Connection Size: 3/8 inch
