Ships from: Low Price for All
Regular price
$2,050.00
Regular price
Sale price
$2,050.00
Low stock
Couldn't load pickup availability
Product details
| Gross weight |
41.99 Kilogram |
| Net weight |
38.93 Kilogram |
| Volume |
0.1 Cubic meter |
| EAN |
5702424061128 |
| Type |
HRP058 |
| Product group |
Hermetic compressors |
| Product Name Description |

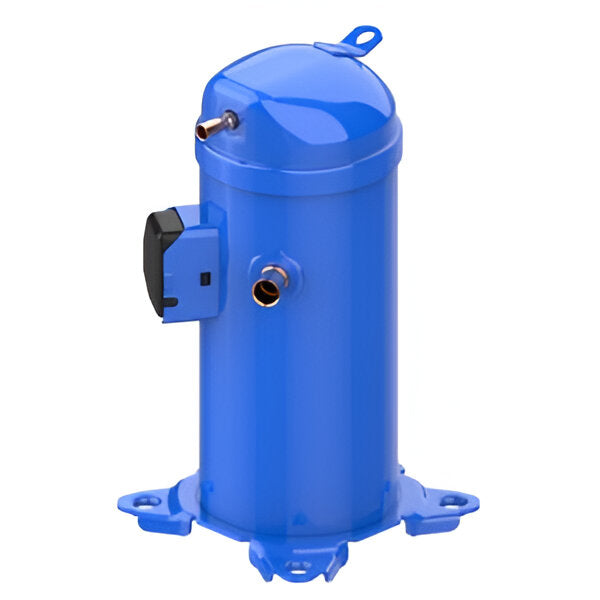

Scroll compressor HRP |
| Brand technique |
Scroll compressor |
| Capacity control |
Fixed speed |
| CE evaluated |
Yes |
| China RoHS compliance |
Yes with exemptions |
| Colour |
Blue |
| Compressor power supply [V] |
200-220/3/50 208-230/3/60 |
| Configuration code |
Single |
| Connection type |
Brazed |
| Contain batteries |
No |
| Description |
HRP058T2 |
| Diameter [mm] |
184 mm |
| Discharge connection height [mm] |
422 mm |
| Discharge connection pipe size [in] |
1/2 in |
| Discharge connection size [in] |
1/2 in |
| Drawing number |
0XR6002B-2 |
| Economizer |
No |
| EU RoHS compliance |
Yes with exemptions |
| EU RoHS exemption clause |
7(c)-I
6(a)
6(a)-I
6(c)
7(a)
8(b) |
| Family |
HRP |
| Fitting standard |
ODF |
| Frequency [Hz] |
50/60 |
| Gauge port HP |
None |
| Gauge port LP |
None |
| Gaz equalization |
None |
| Glass mounting |
None |
| High value of nominal voltage at 50Hz [V] |
220 V |
| High value of nominal voltage at 60Hz [V] |
230 V |
| High value of voltage range at 50Hz [V] |
242 V |
| High value of voltage range at 60Hz [V] |
253 V |
| IDV |
No |
| In scope of WEEE |
No |
| IP protection class |
IP22 |
| Length [mm] |
239 mm |
| Low value of nominal voltage at 50Hz [V] |
200 V |
| Low value of nominal voltage at 60Hz [V] |
208 V |
| Low value of voltage range at 50Hz [V] |
180 V |
| Low value of voltage range at 60Hz [V] |
187 V |
| Max pressure (PS) - high side |
31.1 bar |
| Max pressure (PS) - low side |
26.2 bar |
| Model number |
HRP058T2LC6 |
| Motor protection |
Internal overload protector |
| Network power supply [V/Ph/Hz] |
200-230/3/50 208-230/3/60 |
| Number of starts per hour [Max] |
12 |
| Oil charge [L] |
1.57 L |
| Oil drain |
None |
| Oil equalization |
None |
| Packing format |
Single pack |
| Packing quantity |
1 |
| Phase |
3 |
| Power connections |
Screw connectors 10-32 UNF x 9.5 |
| Refrigerants |
R407C |
| Rotational speed at 50Hz [rpm] |
2900 rpm |
| Rotational speed at 60Hz [rpm] |
3500 rpm |
| Segment usage |
Air conditioning |
| Suction connection height [mm] |
280 mm |
| Suction connection material |
- |
| Suction connection pipe size [in] |
7/8 in |
| Suction connection size [in] |
7/8 in |
| Technology |
Scroll |
| Torque earth [Nm] |
2 N-m |
| Torque power [Nm] |
3 N-m |
| Total height [mm] |
455 mm |
| UL evaluated |
Yes |
| Width [mm] |
239 mm |
