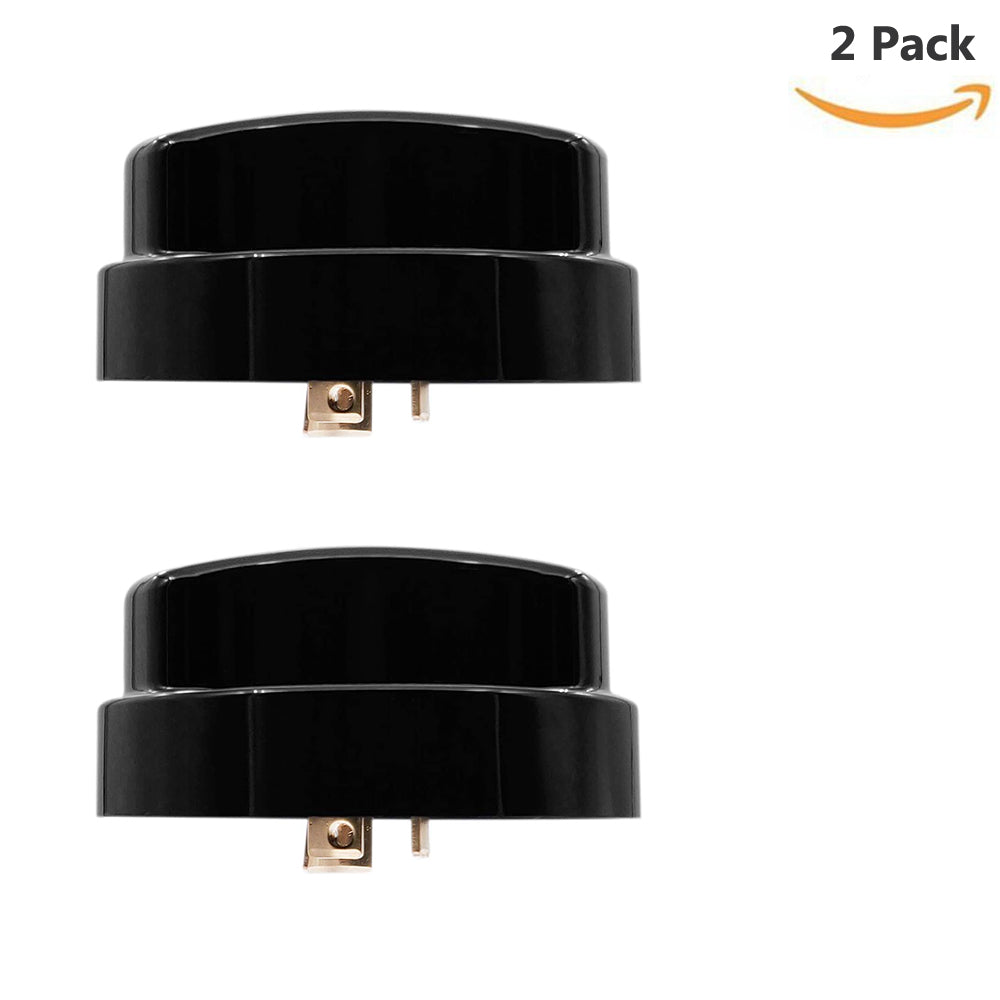

Shorting Cap, 0-480V Photocell Sensor Shorting Cap, IP66 Photoelectric Switch Short Circuit Cap for Outdoor Led Parking Lot Area Light-2 Pack

Shorting Cap, 0-480V Photocell Sensor Shorting Cap, IP66 Photoelectric Switch Short Circuit Cap for Outdoor Led Parking Lot Area Light-2 Pack

$23.00
$23.00
Sale Sold out
Shipping calculated at checkout.

In stock

Shipping:  US free shipping
Shipping by:  FedEx UPS
Delivery time:  2-4 business days after payment

Bigger Quantity Cheaper Price

For Wholesale and Custom Order, Please Contact sales@choierlight.com
Minimum Same Variant Quantity Discount
10-29 3%
30-99 5%
100+ 8%

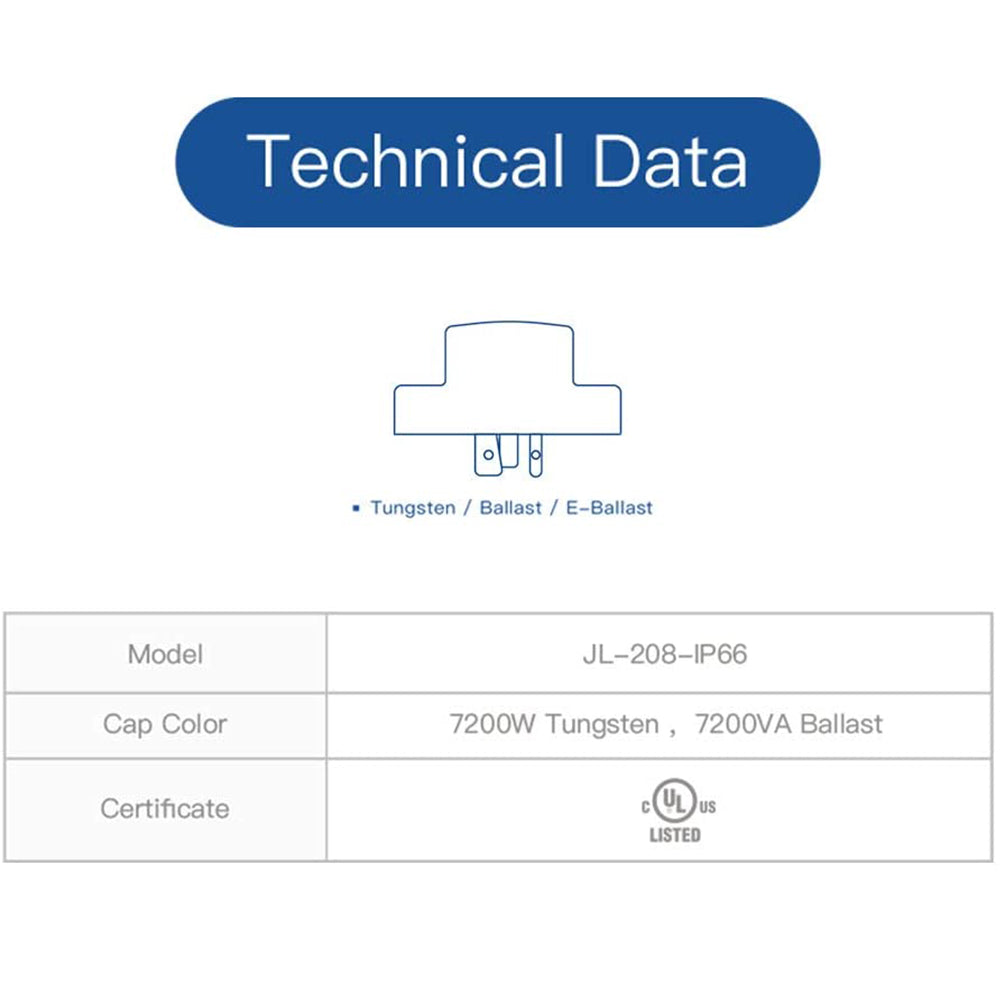

Shorting Cap Spec:

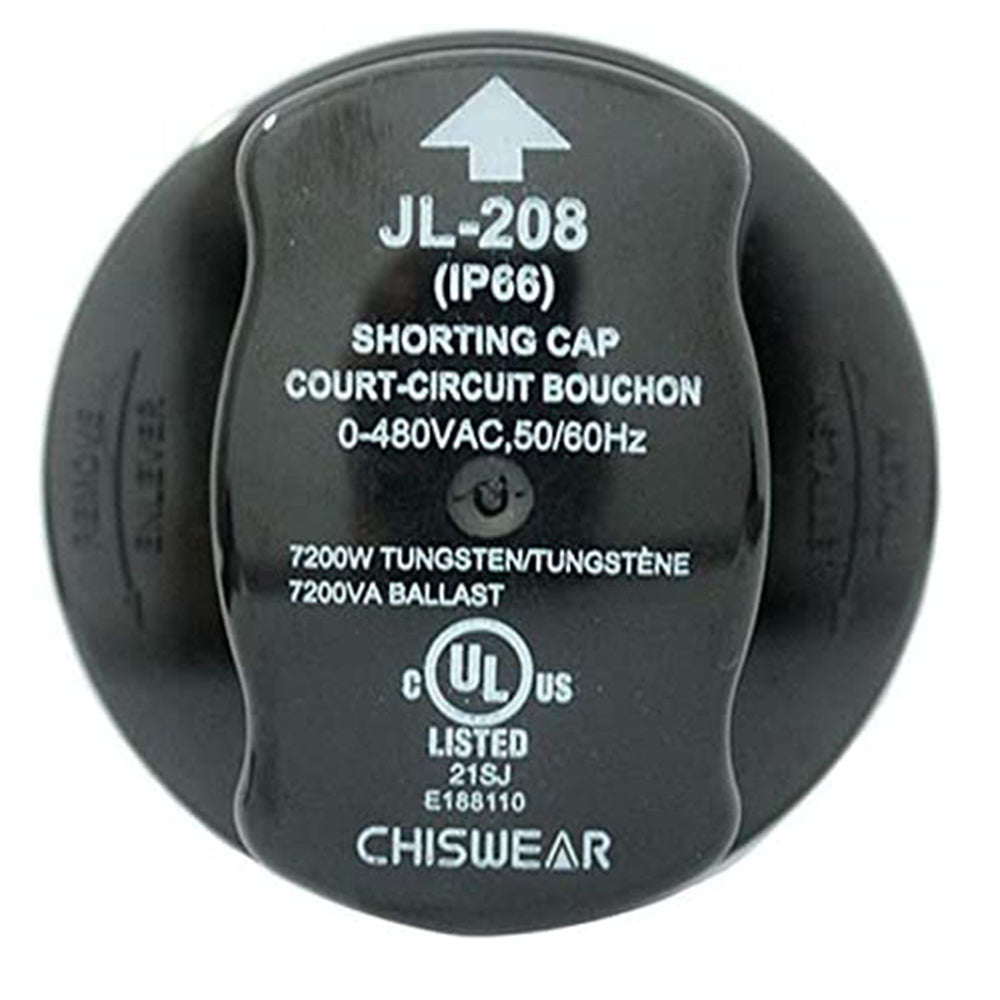

  • Model: JL-208
  • Rated Voltage: 0-480VAC
  • Rated Frequency: 50/60Hz
  • Relative Humidity: 99%RH
  • Energy Consumption: Less than 1Watt
  • Housing: UV stabilized impact resistant polycarbonate (PC)
  • Operating Temp: -40°C to +70°C (-40°F to +158°F)
  • Certification: UL listed

https://cdn.shopify.com/s/files/1/0692/4245/4334/files/Temporary-Work-Light-V4.9.pdf?v=1

Photocell Sensor Shorting Cap Features:

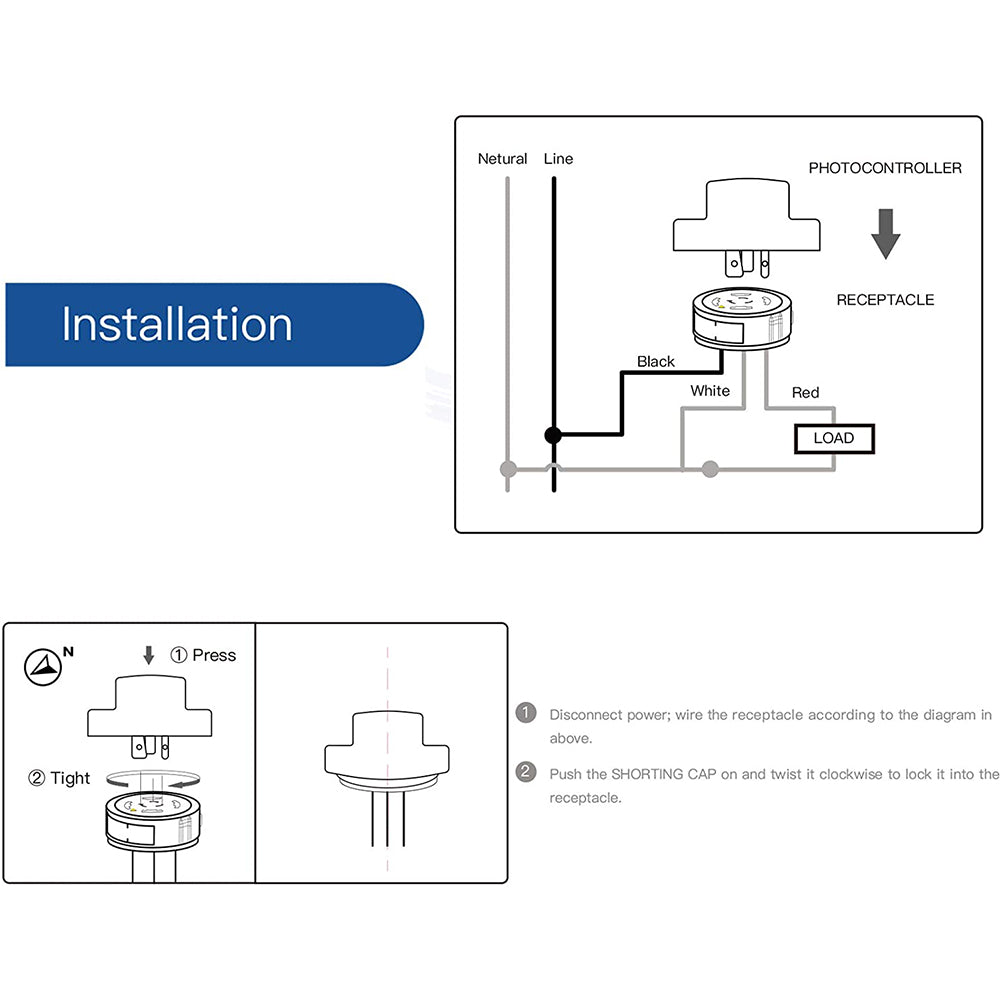

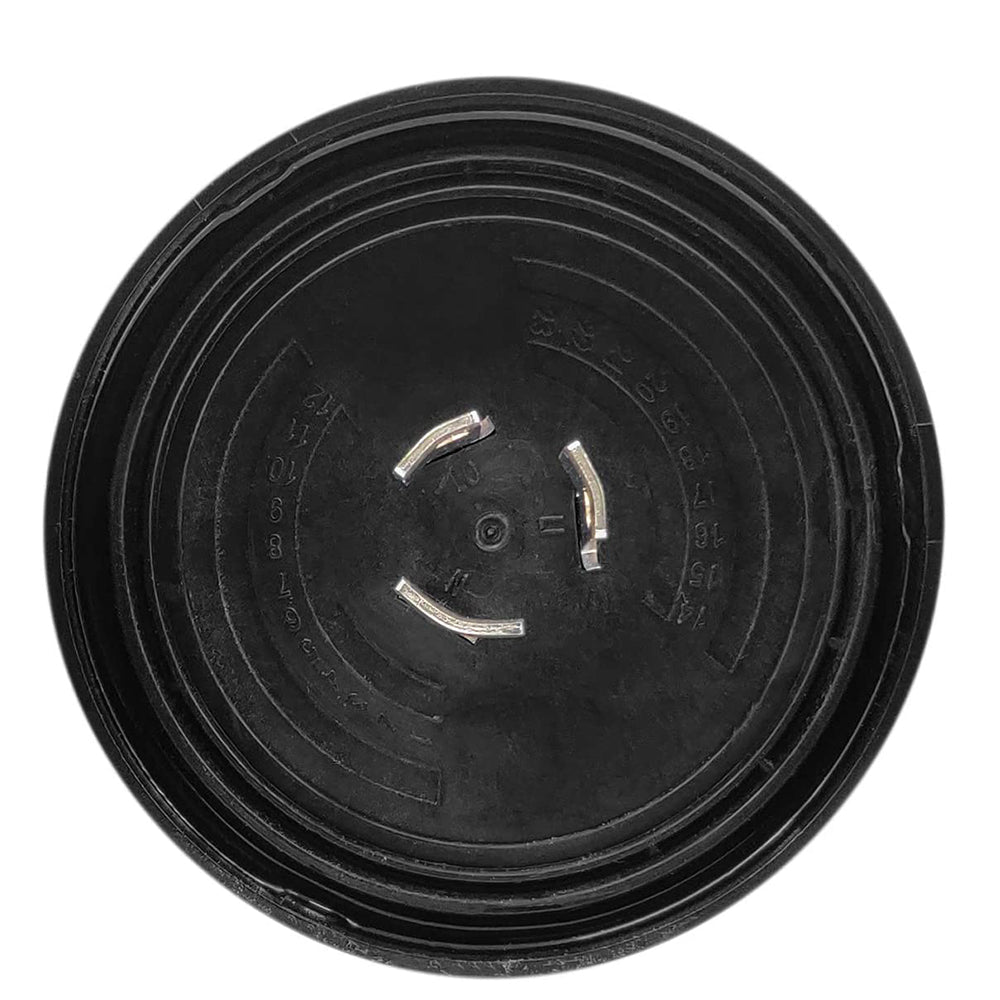

  • Intend to short a twist-lock photocontrol receptacle while under maintain. Easy-to-maintain Twist-lock(ANSI C136.10)
  • IP66 body protection/IP65 while installed with recognized receptacle.
  • UV stabilized Polycarbonate Enclosure/UV stabilized Polybutylene Base.
  • This product provides twist lock terminals meeting the requirements of ANSI C136.10-2010 and the Standard for Plug-In, Locking Type Photocontrols for Use with Area Lighting UL773.
  • Can be used with a receptacle meeting ANSI C136.41-2013.
