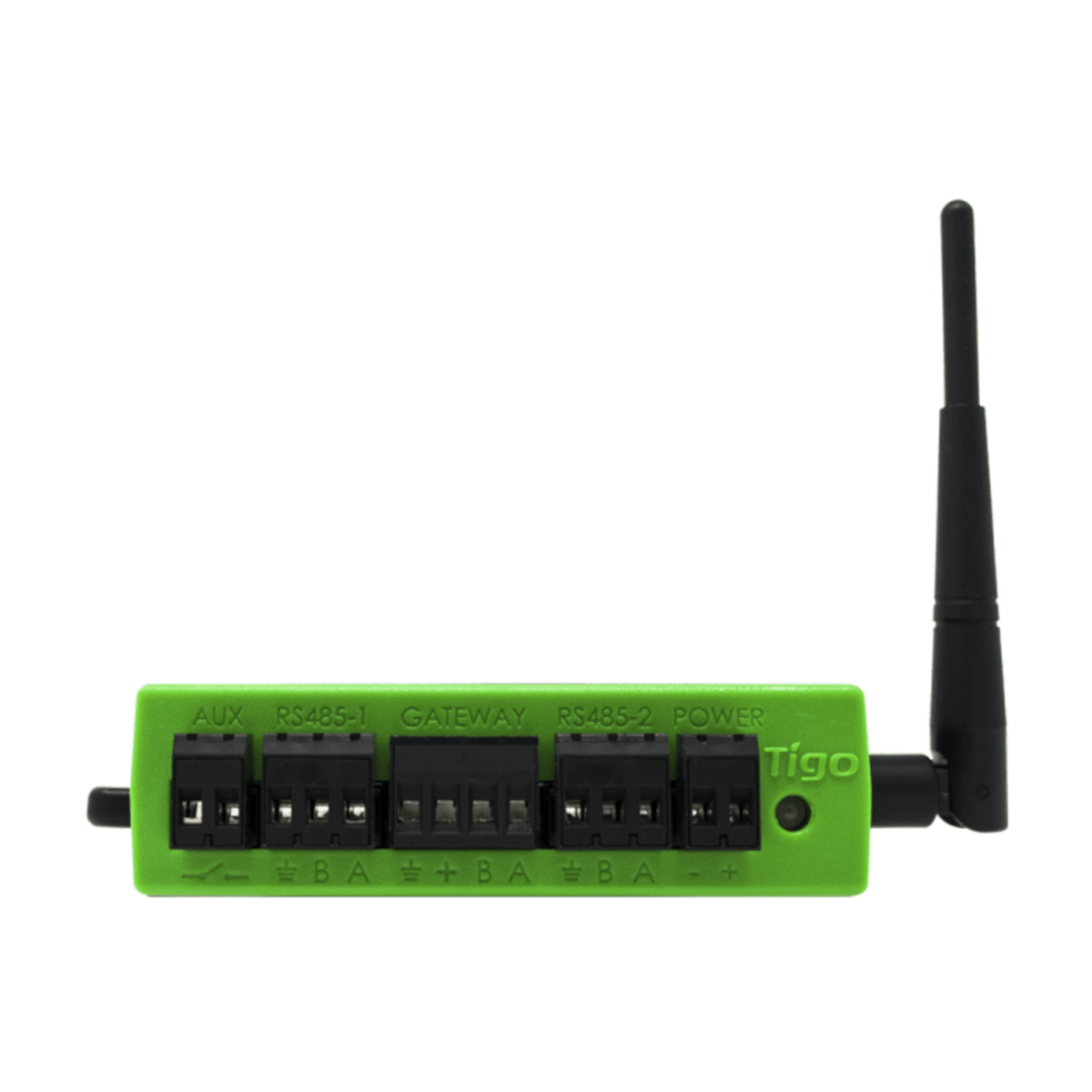

The CCA is a compact, powerful data logging and communications gateway that powers the monitoring and safety capabilities of Tigo TS4 module level power electronics (MLPE). , One of the smallest solar data loggers on the planet, Tigo's Cloud Connect Advanced (CCA) enables valuable insight to collected and transmitted data for real-time analysis. The CCA is part of Tigo's SMART communication platform which is supported by all major inverter and module manufacturers worldwide.
Features
Enables module-level monitoring through the Tigo cloud platform
Pairs with the Tigo Access Point (TAP) to enable compliance with NEC 2014, 2017 and 2020 690.12 rapid shutdown requirements
Collects data from up to 900 TS4s via up to seven TAPs
Connects to wired and wireless networks
Includes a multifunction LED status indicator
Reads data from a wide range of 3rd party devices including Modbus-equipped inverters, charge controllers, weather stations, and revenue grade meters
Enables faster deployment
Increases integration opportunities for more inverter partners
Expediates immediate access to system data for installers
Enables internet connection via Ethernet, Wi-Fi or optional cellular connectivity
Specifications
Input Voltage: 10-25 V
Power Consumption (up to 7 TAPs): 3-15 W
Operating Temperature: -20 to 85°C
Maximum Altitude: 3000 m (9840 ft)
Cooling: Natural Convection
Includes: DIN Rail Mountable Bracket, Multifunction LED Status Indicator
Standards: CE Certified, FC, IEC, cCSAus Certified
